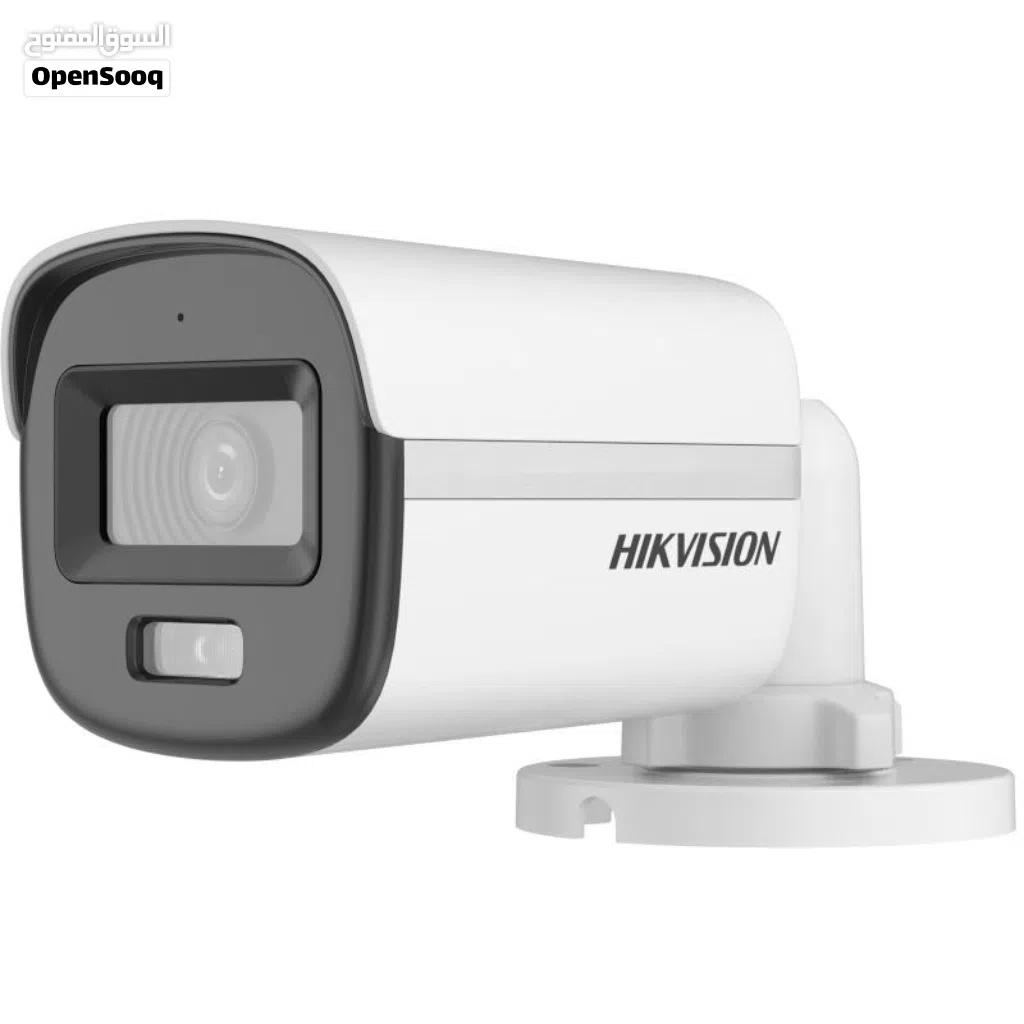

2 MP ColorVu Fixed Mini Bullet Camera

Specification
Camera
Lens
Illuminator
Interface
General
Approval
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

Lens Mount
M12
Illuminator
Supplement Light Type
White Light
Supplement Light Range
White Light Distance: Up to 20 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness;Mirror;Sharpness;Anti-Banding;AGC
Frame Rate
TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

Day/Night Mode
Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC;HLC;Global
Noise Reduction
3D DNR/2D DNR
White Balance
Auto/Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm (White Light)
General
Power
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Max. 2.4 W

Material
Plastic
Dimension
161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
Approx. 229 g (0.50 lb)
Operating Condition
-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
