مكسر صوت بدون بور ⁦⁦MXi.12FX⁩⁩ ⁦⁦12⁩⁩ ⁦⁦Input⁩⁩ ⁦⁦Mixer⁩⁩ ⁦⁦TOPP⁩⁩ ⁦⁦PRO⁩⁩

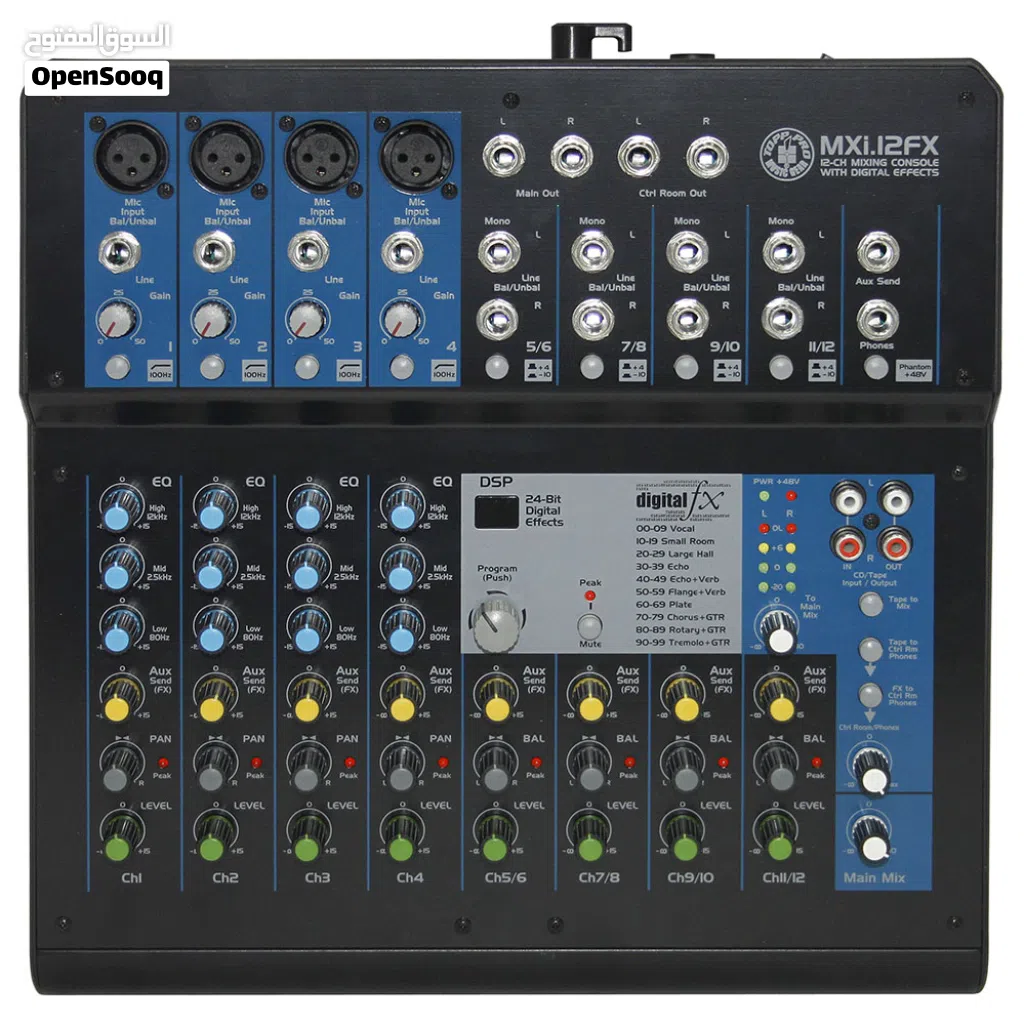

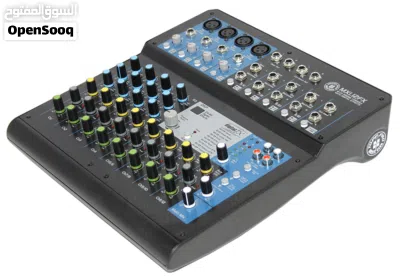

مكسر صوت بدون بور MXi.12FX 12 Input Mixer TOPP PRO

12 Input Mixer
4 MIC/Line inputs - 4 Stereo Line Inputs
24-bit Digital FX Processor / 100 Presets

Model MXi.12FX
Frequency Response
Mic Input to any Output
(Gain @ 0 dB, Rated output level) 20 Hz to 50 kHz(0, -1dB)
20 Hz to 130 kHz(0, -3dB)
Distortion (THD&N)
Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth) 0.003%(A-weighted)
MIC EIN (Equivalent Input Noise)
Input: Channel INPUT MIC
(Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth) 119dBu (A-weighted)
Input Gain Control Range (20 Hz-20 kHz bandwidth)
Mono Channel MIC: 0 to 48dB, LINE: -33 to +15dB
Stereo Channel LINE: -8 to +6dB
Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth)
Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity
Main Mix knob/fader @ -8 -87dBu(A-weighted)
Channel Level knob/fader @ -8 -85dBu(A-weighted)
Rated Output Level
Main, Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz) 0dBu
Maximum Output Level
Main, Aux, Control Room output(all knob/fader
@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) +20dBu
Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm)
Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced) 74dBu
Mono Channel MIC INPUTPHONES (1/4" TRS Stereo) 84dBu
Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced) 79dBu
Mono Channel MIC INPUT TAPE OUT (RCA) 74dBu
Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 59dBu
Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 33dBu
TAPE INPUT MAIN OUT (1/4" TRS Unbalanced) 10dBu
Main mix Noise (20 Hz-20 kHz bandwidth)
MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity)
Main Mix knob/fader @ -8 -106dBu (A-weighted)
Channel Level knob/fader @ -8
Main Mix knob/fader @ 0dB -95dBu (A-weighted)
Channel Level knob/fader @ -
Main Mix knob/fader @ 0dB -93dBu (A-weighted)
Channel Level knob/fader @ 0dB
Input HPF
Channel 1-4 75Hz, 18 dB/oct
Equalization (Mono channels)
High +/-15 dB @12 kHz
Mid +/-12 dB @2.5 kHz
Low +/-15 dB @80 Hz
Internal Digital Effect
Presets 100
Controls 100-Position PRESET Selector and Mute Switch
Display Two 7-segment display and Mute/Peak LED Indicator
Type of effects VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR
PEAK Indicator
Channel 1-12 +17dBu
Digital Effect(AUX send) +11dBu
VU Meters +20dBu
VU Meters
Main Left and Right (4-segment) Clip (+20), +6, 0, -20 (0 LED=0 dBu)
Impedance
Microphone Input 2.6k Ohms
Line Input 10k Ohms
CD/Tape Input 22k Ohms
Main Outputs 120 Ohms
Ctrl Room, Aux Sends 120 Ohms
Tape Output 1K Ohms
Phones Outputs 25 Ohms
Phantom power
Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD) +48V
Power supply
Adaptor AC 18V, 1000mA
Power Consumption 18W
Physical
Dimension (L*W*H) 271*259*54.3mm
Weight Net:1.9kg
