شاحن سريع ⁦⁦AC⁩⁩ للمركبات الكهربائيةِ ⁦⁦Launch⁩⁩ ⁦⁦Smart⁩⁩ ⁦⁦EV⁩⁩ ⁦⁦Charger⁩⁩

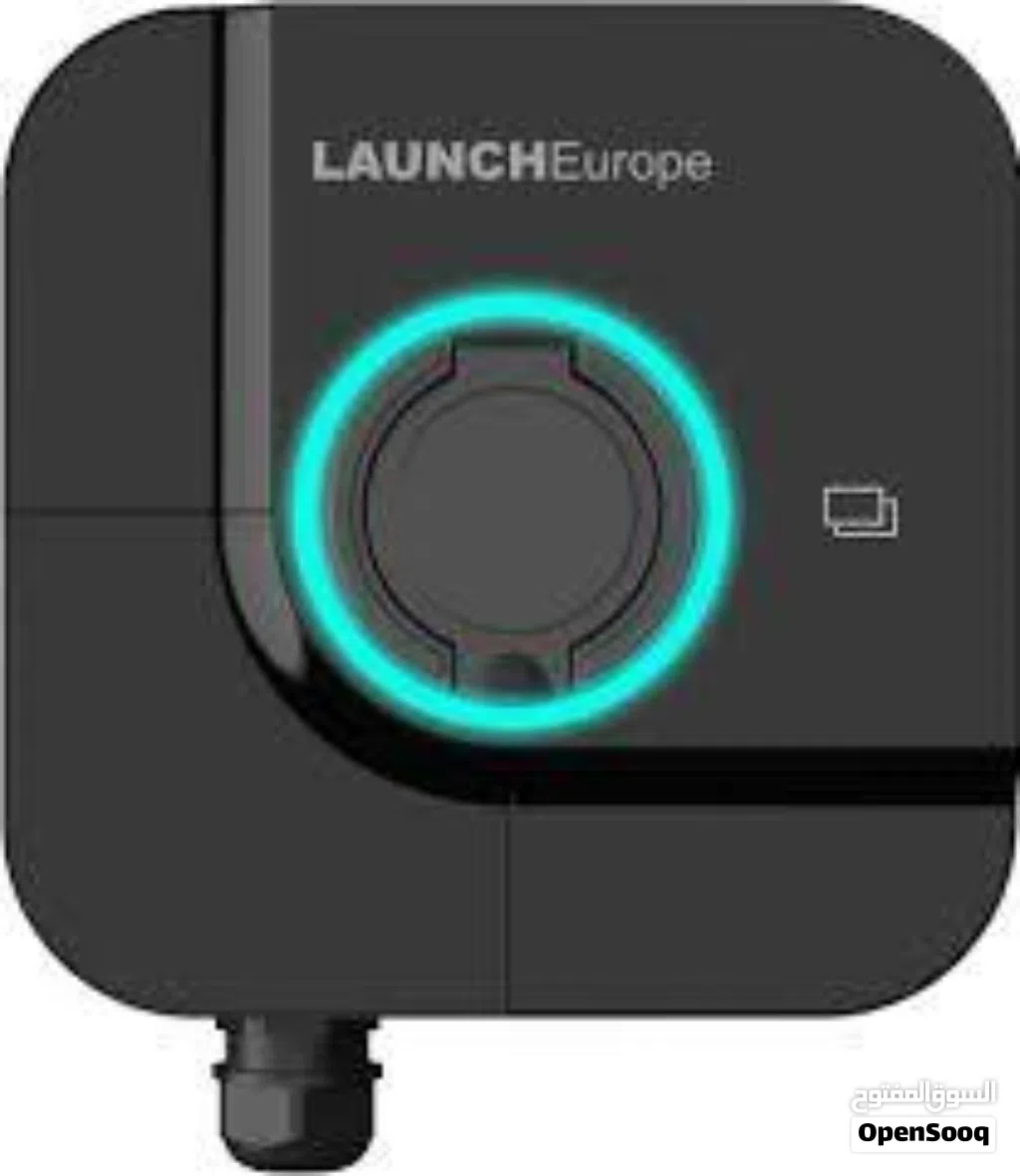

شاحن سريع AC للمركبات الكهربائيةِ Launch Smart EV Charger
Smart EV Charger is the perfect charging station for your hybrid and electric vehicle. With this intelligent solution, your vehicle stay optimally charged at all times. This charging station offers you the full range of functions. Thanks to Bluetooth, Wi-Fi, Ethernet, 4G, RS485 and CAN, you can easily control it via an RFID card or the app and always have an overview of the charging process. Load balancing also ensures optimal distribution of energy. The EVC11C wallbox is also compatible with PV systems and supports OCPP 1.6. With CE, UKCA and ROHS certifications as well as the TÜV Rheinland seal, this charging station stands for the highest quality and safety.
Product Overview:
- 11 kW AC Smart EV Charger(Mode 3 charging)
- App, RFID and OCPP supported
- Load balancing and PV supported
- Full meet the EU Standard und Norm (IEC 61851-1:2017, EN IEC 61851-1:2019)
Highlights:
Full-Featured:
- Bluetooth/Wi-Fi/Ethernet/4G /RS485/CAN
- Operation via RFID card and App
- Load balancing
- Compatible with PV
- OCPP 1.6 supported
Quality:
- CE,UKCA, ROHS (TUV)
- TÜV Rheinland certified
- PC+ASA housing; 10 times the weathering and UV resistance of ABS
Safety:
- Multiple electrical protection
- High waterproof level (IP55, IP65)
- High impact protection: IK10
Design:
- Compact size
- Piano black design
- Convenient design for maintenance
- Easy-Installation with mounting bracket
Features:
All-in-One smart "LE Charger" App:
- Operation/Configuration/Management
- Start and stop the charging session
- Set and change the charging current
- Set up charge schedule
- Review of charge history
- Check working status and warning massage
Load Balancing/Charging Management:
- Preventing overloads
- Optimizing charging with PV system
- Multiple charging stations
Core parameters:
- Maximum charging power: 11kW
- 3 Phase 400V, 16 A or one Phase 230V, 16A
- Two Versions: Socket and Plug
- IP65, IP55*, KI10
- 5 meter cable**
* for EVC11B
** for EVC11C
Flexible and simple installation:
- Easy installation with separate Installation plate
- Wall-mounting
- Pedestal mounting
Safety:
- Overcurrent protection
- Short circuit protection
- Leakage Protection
- Undervoltage protection
- Overvoltage protection
- Over-temperature protection
- Overload protection
- Rainproof
- UV Lightning protection
- Safety of Flammability with level UL94 V-0
Design:
- All black design, combination of matte and glossy
- Compact Size: 260x260x110mm
- Modern
