⁦⁦5G⁩⁩ ⁦⁦SA/NSA⁩⁩ ⁦⁦AX3000⁩⁩ ⁦⁦Wi-Fi⁩⁩ ⁦⁦6⁩⁩ ⁦⁦Router⁩⁩ ⁦⁦P5⁩⁩ ⁦⁦1.0⁩⁩ راوتر يدعم كلشي بسرعات خيالية مع خطين

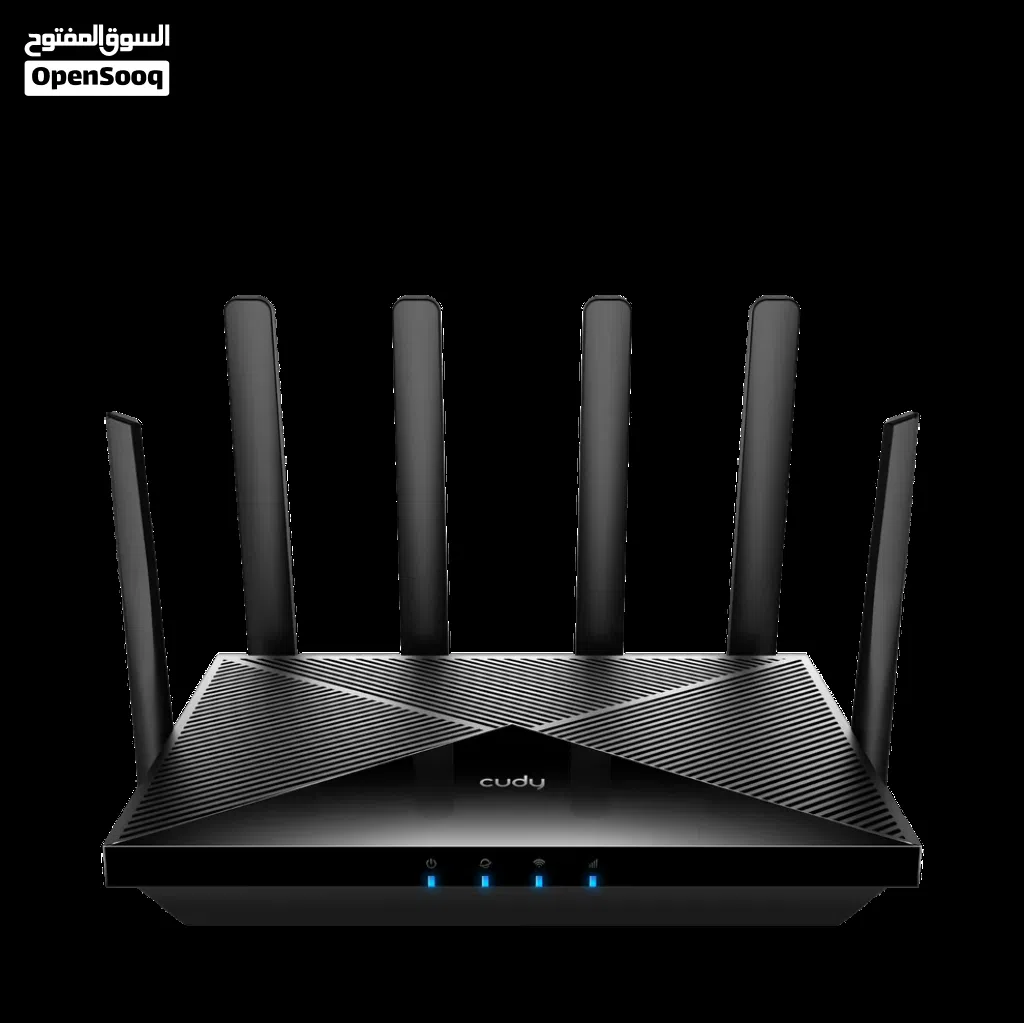

5G SA/NSA AX3000 Wi-Fi 6 Router
P5 1.0
A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features complete Qualcomm solutions, dual SIM slots, and a high-capacity AX3000 WiFi 6.

5G Rel. 16 with Max 3.4 Gbps DL
UL/DL 4CA, 4×4 MIMO
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi 1
4× Gigabit Ethernet Ports
2× Nano SIM Slots
Detachable Cellular Antennas
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control
Cudy P5 adopts upgraded 3GPP Rel.16 standard and supports both 5G NSA and SA modes to work with all the mainstream carriers worldwide.


Qualcomm X62 5G modem, enabled by Advanced AI features and a 4nm process chip, provides data downlink speed up to 3.4 Gbps.


Super-Fast Wi-Fi 6
The entire 160 Mhz channel width enables peak speed at 2402 Mbps on the 5 GHz band, which is best for lag-free gaming and live streaming with flawless quality. Far-reaching 2.4 GHz signal covers an expansive area so that you can enjoy the network in the backyard. OFDMA and powerful CPU enable 4× capacity for more devices.

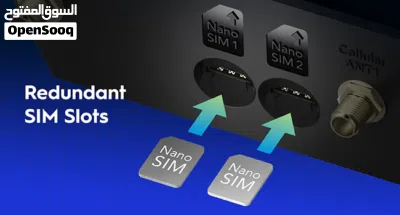

Dual SIM Slots
Dual SIM slots provide redundancy and keep the device always online.

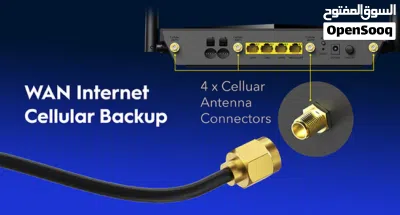

Backup and Detachable Antennas
WAN/WISP/Cellular1/Cellular2 give you triple backups for a reliable network. To enhance signal quality, you may replace cellular antennas with extension antennas.


Online Redundancy
Dual SIM slot redundancy and WAN/Cellular backup provide high redundancy for the network.


Band Lock
4G/5G band lock makes it possible to lock the 4G working frequency to one or several bands to maintain operation stability.

(Image for reference. See supported bands in the spec sheet)


TTL Settings
Support manual sets TTL values to meet ISP's requirements. Support set IPv4 TTL and IPv6 HL Values.


Advanced DNS Security
Encrypt your web browsing lookup with trustful partners, preventing eavesdropping and manipulation of DNS data via a man-in-the-middle attack.


VPN Server and Clients

VPN Available in Multiple Ways
Connect back to your company or private network in any way you are used to. Or hold a VPN server to build up your private and secure network. LT12 supports all mainstream VPN protocols, including PPTP, L2TP, OpenVPN, WireGuard, IPSec, and ZEROTIER.


Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

Model Version P5 1.0
CPU Chipset IPQ5018
CPU Details 1.0 GHz Dual-core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Cellular Cellular Standards
5G Rel. 16
DL 4G Cat. 19 / UL 4G Cat. 18
Cellular Antennas 4× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 2× Nano SIM Slots
Available Versions EU, US
EU Version Cellular Suitable Region Europe, Middle East, Africa, Asia-Pacific (Exc. JP, CN), Brazil
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
LTE-FDD: B1/3/5/7/8/20/28/32/71
LTE-TDD: B38/40/41/42/43
WCDMA: B1/5/8
US Version Cellular Suitable Region Global
Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46
WCDMA: B1/2/4/5/8/19
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
5 GHz Antenna Gain Max 4.79 dBi
2.4 GHz Antenna Gain Max 3.59 dBi
Beamforming True
FEM or PA/LNA
5 GHz: 2× External
2.4 GHz: 2× External
Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20
