ELM327 USB OBD2 Modified For Ford MS-CAN HS-CAN

ELM327 USB OBD2 Modified For Ford MS-CAN HS-CAN
وصلة الفور سكان بمدخل ال OBD2

السعر = 35 دينار
للطلب او الاستفسار الاتصال = اضغط لإظهار رقم الهاتف 9627920792XX

ELM327 USB OBD2 Modified For Ford MS-CAN HS-CAN Mazda Diagnostic Forscan Scanner

Product Description
Brand V diagtool
ItemType Car Diagnostic Cable
USB version HS CAN/MS CAN switch + FTDI chip + PIC18F25K80 ch
Support language English,Germany,Greek,Spanish,French,Serbian.
Connectivity USB
OBD Interface OBD,OBDII
Vehicle Type Passenger Vehicle

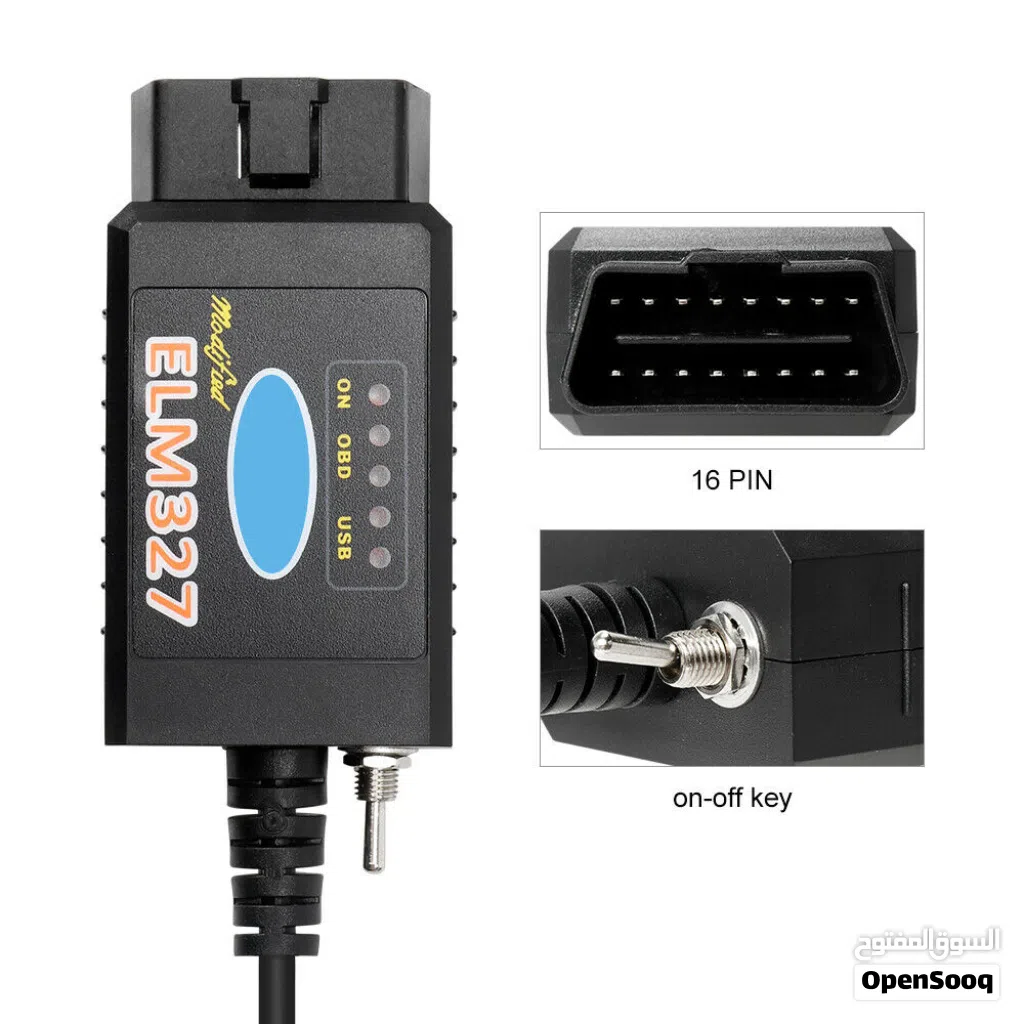

For Ford/MazdaELM 327 USB FTDI chip with switch

Note:
USB version: HS CAN/MS CAN switch + FTDI chip + PIC18F25K80 chip
*This ELM327 only supports 12v Cars(including petrol and diesel cars),can't support for 24V or 15V vehicles.
*Please use 16pin OBD II adapter cars,we dont suggest to use it on non-16pin cars,even with a xpin to 16Pin extended cable.

Technical Details:
1Latest ELM327 version for greater F.o.r.d compatibility
2Manufactured modification to include a switch to connect to different CAN buses
3Designed for FORScan software
4Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more
4MS CAN bus and HS CAN bus support
5Drivers and instructions included

Product Introduction:
One ELM327 OBDII OBD2 USB with switch. Designed for communicating with F.o.r.d, Mazda, Lincoln and Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:
FORScan
Elmconfig
FoCCCus
FF2
Plus more

Modified EML:
Please note that many F.o.r.d and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN
is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because for F.o.r.d HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

Supported Vehicles:
All for For-d, for Ma-zda, for Lin-coln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.

Supported Protocols
for F.O.R.D HS CAN
for F.O.R.D MS CAN

Pack list
ELM327 diagnostic interface

الرمز = س ا ر @ 15
الرقم = 5
