Arbitrary Waveform Function Generator

Max 60MHz frequency output,300MSa/s Sample rate
14 bits Vertical Resolution, 100K Arb waveform length
Comprehensive waveform output: 5 basic waveforms and 160 built-in arbitrary waveforms
: Comprehensive modulation functions
AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst
SCPI supported

Technical Data:
Amplitude

into 50Ω load

1mVpp ~ 10Vpp (≤10Hz)
1mVpp ~ 5Vpp (≤60MHz)
DC Offset Range (AD+DC)

±(10 Vpk – Amplitude Vpp/2) high resistance; ±(5 Vpk – Amplitude Vpp/2) 50Ω

DC offset resolution

1mV or 4digits

Load Impedance

50Ω (typical)

DC offset Accuracy

±(1 % of setting + 1 mV + amplitude Vpp 0.5%)

Modulation

Type

AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst

Frequency Counter

Function

Frequency, Period

Frequency Range

100mHz ~ 200MHz

Frequency Resolution

6 digits

Input / Output

Display

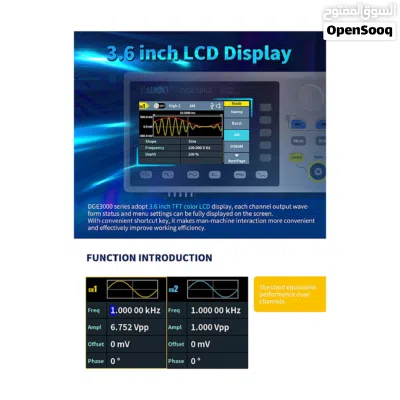

3.6-inch LCD

Input mode

External modulation input
External trigger input
External reference clock input/output
Communication Interface

USB Host, USB Device


:Specifications
SKU ME.EL.FU.00037
Product Type Function Generators
Model No DGE3062
Frequency Output 60MHz
Sample Rate 300MSa/s
Channel 2
Vertical Resolution 14 Bits
Standard Waveform Sine, Square, Pulse, Ramp & Nois
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(X)/x, Step Wave & Others, Total 160 Built-in Waveforms
Frequency 1μHz-60MHz (Sine) / 1μHz ~ 20MHz (Square & Pulse) / 1μHz ~ 2MHz (RAMP)
Frequency Noise 20MHz (-3dB, Typical)
Frequency Arbitrary Waveform 1μHz - 10MHz
Arbitrary Waveform Length 2 Points – 100K Points
Arbitrary Sample Rate 300MSa/s
Display 3.6 inch LCD
Communication Interface USB Host, USB Device
Input Mode External Modulation Input, External Trigger Input, External Reference Clock Input / Output

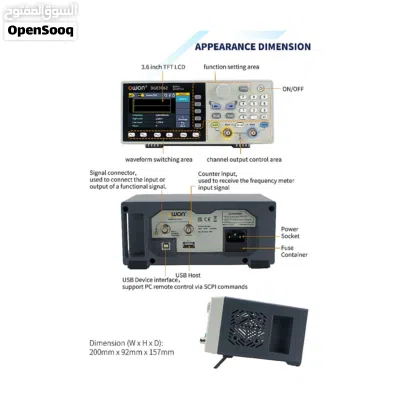

Dimensions (W×H×D) 200 x 92 x 157 mm
