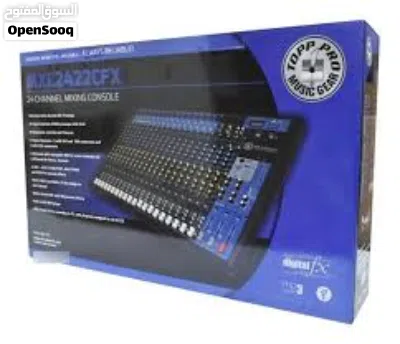

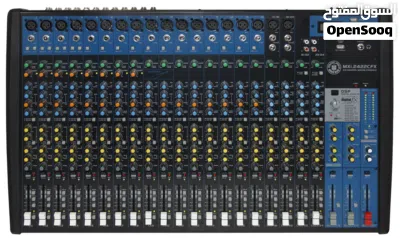

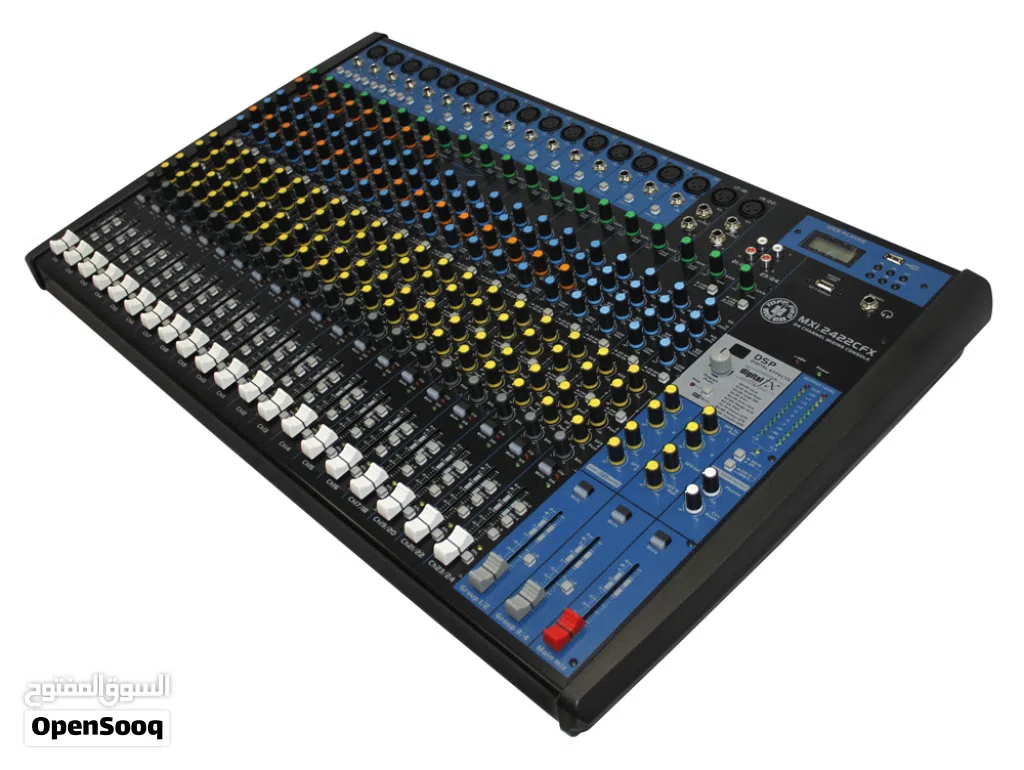

SOUND MIXER 24Ch. MXi.2422CFX TOPP PRO مكسر صوت

8 Compressors control
Built in 24-bit DSP effect with 100 presets
Assembled MP3 Player
Mono channels
Microphone input XLR balanced
Frequency response 10Hz to 55KHz,+/-3dB
Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted
Gain range 0dB to 50dB
Max. Input +21 dB
LOW CUT 75Hz
SNR <-100dBr A-weighted
Phantom power +48V with switch control
Line input 1/4” TRS with balanced
Frequency response 10Hz to 55KHz,+/-3dB
Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range +20dB~ -30dB
Compressor GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
Stereo input channels
Mic input XLR with balanced
Line input 1/4' TRS with balanced
Frequency response 10Hz to 55KHz, +/-3dB
Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range +20dBu~ -30dBu
SNR <-100dBr A-weighted
RCA input channels
RCA input RCA with un-balanced
Frequency response 10Hz to 55KHz,+/-3dB
Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted
Sensitivity range +20dBu~ -30dBu
SNR <-100dBr A-weighted
Channels EQ
Channel Mono / Stereo
High +/-15dB @12KHz / +/-15dB @12KHz
Mid +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
Low +/-15dB @80Hz / +/-15dB @80Hz
Impedances
Microphone input 1.8K Ω
All other input 10K Ω or greater
Tape out 1K Ω
All other out 120 Ω
DSP section (options)
A/D and D/A converters 24bit
Type of effects Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
Controls 100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
FOOT-SW TIP: FX - SLEEVE: GND
Main mix section
Max. MAIN MIX output +26dBu XLR balanced (+20dBu un-balanced)
AUX range OFF to +10dB
Fader range OFF to +10dB
PHONES/CONTROL-ROOM range OFF to +10dB
Hum & Noise <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
Crosstalk <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum
Power supply
Main voltage 100-240V~ 50/60Hz
Fuse T1.25A AC250V
Rated power consumption 30W
